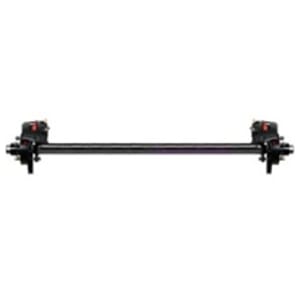

5,200 lb. Standard Spring Dexter® Trailer Axle Beam
Manufacturer: Dexter Trailer Axle
Part #: KT52XX42F
Armed Forces Day Sale! Save! 10.7% off this product! Discount auto applied at checkout
This product qualifies for quantity discount pricing
| Quantity | Discount% | Discounted Base Price |
|---|---|---|
| 2-5 | 2% | $261.65 |
| 6-20 | 4% | $256.31 |
| 21-30 | 6% | $250.97 |
| 31-40 | 8% | $245.63 |
| 41-750 | 10% | $240.29 |
$9.99 FedEx Flat Rate Shipping Per Order
Made In The USA
107 Years in Trailer Parts Distribution
Summary
Trailer axle: 3" diameter x 3/16" wall round tubing. Lubrication: Grease. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 19.5" Minimum Overhang = 15" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination. Axles are straight axles, not cambered. Coated with standard black paint. Axle seats come loose with axle. This listing is for an Axle beam only, hubs are not included and are sold separately.
Frequently Bought With
Hub options for 5,200 lbs. Dexter® Axle
Electric Brake options for 5,200 lbs. Dexter® Axle
Hydraulic Brake options for 5,200 lbs. Dexter® Axle
Hydraulic Disc Brake options for 5,200 lbs. Dexter® Axle
U-Bolt and Hanger Kit options for 5,200 lbs. Dexter® Axle
$677.99
Suspension Kit options for 5,200 lbs. Dexter® Axle
Wheel and Tire options for 5,200 lbs. Dexter® Axle
Description
Genuine Dexter® 5,200 lb. capacity straight axle with standard spring configuration. This heavy-duty axle beam is a top choice for single and tandem axle boat trailers, utility trailers, cargo trailers, and equipment haulers that require extra strength and reliability.
Built from robust 3" diameter round tubing with a heavy wall thickness, this axle features precision-weld on spring seats for standard double-eye or slipper leaf springs and pre-welded brake flanges ready for 12" x 2" electric or hydraulic brakes.
Key Features:
- Capacity: 5,200 lbs.
- Axle Type: Straight (no drop) – Standard Spring
- Tube: 3" diameter round tubing
- Spindles: 42 spindle (1-3/4" inner / 1-1/4" outer journals)
- Brake Flanges: Pre-welded for 12" x 2" brakes
- Spring Centers: Spring seats come loose with axle
- Hub Face: Multiple track lengths available
- Finish: Black painted for corrosion protection
- Made in USA by Dexter Axle
Ideal For:
- Tandem axle boat and marine trailers
- Larger utility, cargo, and landscape trailers
- Replacing worn or bent 5,200 lb. axles
- New custom trailer builds
This Dexter axle beam gives you the strength, smooth ride, and easy maintenance that has made Dexter the most trusted name in trailer axles.
Ready to upgrade your trailer with genuine Dexter quality? Add the Dexter® 5,200 lb. Standard Spring Axle Beam to your cart today!
Trailer axle: 3" diameter x 3/16" wall round tubing. Lubrication: Grease. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 19.5" Minimum Overhang = 15" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination. Axles are straight axles, not cambered. Coated with standard black paint. Axle seats come loose with axle. This listing is for an Axle beam only; hubs are not included and are sold separately.
