DeeMaxx Trailer Disc Brakes

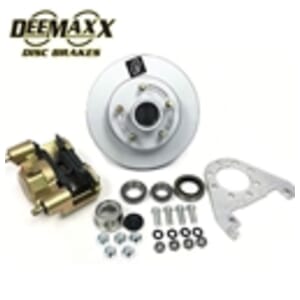

3,500 lbs. DeeMaxx Gold Finish disc brake

This Kit includes:

• 1 x 10" 5 Lug Maxx Integral Vented Rotor w/ 1/2" Studs
• 1 x  Gold Caliper w/brake pads

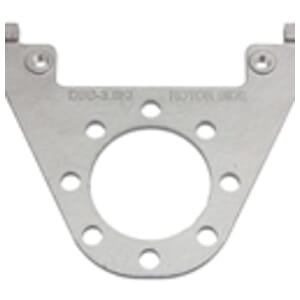

• 1 x 3,500 lb. axle Maxx mounting bracket
• 1 x L44649 Outer Bearing
• 1 x L68149 Inner Bearing
• 1 x 1.98" Grease Dust Cap w/Plug
• 1 x 171255TB 1.719" x 2.561" Double Lip Seal
• 4 x 7/16" x 1-1/4 Bolts
• 4 x 7/16" Lock Washers
• 4 x 7/16" Fine Hex Nuts
• 5 x 1/2"-20 60º Lug Nuts

Southwest Wheel 3,500 - 6,000 lbs. Trailer Ceramic Disc Brake Pads. Fit's 3500-6000 lbs. Trailer Axles. Will work with Kodiak and DeeMaxx Disc Brakes. Will work with 10" or 12" Rotors.1 Kit will do 2 wheels. Slotted and chamfered. Semi-Metallic.

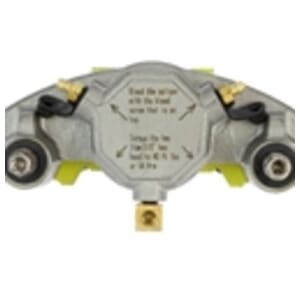

Southwest Wheel 3,500 - 6,000 lbs. Gold Zinc Plated Finish Disc Brake Caliper w/Ceramic Pads. Fit's 3500-6000 lbs. Trailer Axles. Will work with Kodiak & DeeMaxx Disc Brakes. Will work with 10" or 12" Rotors. Gold Finish. Floating Design floating caliper, common on production vehicles, has a piston or pistons only on the inboard side of the caliper. The floating caliper is mounted on pins or slides so that when the piston extends and presses the inboard pad against the rotor, the whole body of the caliper slides on its pins or guides in the opposite direction, bringing the outboard pad into contact with the rotor. Floating calipers cool better as the fluid and piston are only on the inboard side of the rotor. Floating calipers have fewer moving parts and seals to leak or wear out. Floating caliper design more easily incorporates a cable-operated parking brake.

Southwest Wheel 3,500 - 6,000 lbs. Maxx Finish Disc Brake Caliper w/Ceramic Pads. Fit's 3500-6000 lbs. Trailer Axles. Will work with Kodiak and DeeMaxx Disc Brakes. Will work with 10" or 12" Rotors. Maxx Finish. Floating Design. A floating caliper, common on production vehicles, has a piston or pistons only on the inboard side of the caliper. The floating caliper is mounted on pins or slides so that when the piston extends and presses the inboard pad against the rotor, the whole body of the caliper slides on its pins or guides in the opposite direction, bringing the outboard pad into contact with the rotor. Floating calipers cool better as the fluid and piston are only on the inboard side of the rotor. Floating calipers have fewer moving parts and seals to leak or wear out. Floating caliper design more easily incorporates a cable-operated parking brake.

3,500 lbs. DeeMaxx Maxx Finish disc brake

This Kit includes:

• 1 x 10" 5 Lug Maxx Integral Vented Rotor w/ 1/2" Studs
• 1 x  Maxx Caliper w/brake pads
• 1 x 3,500 lb. axle Maxx mounting bracket
• 1 x L44649 Outer Bearing
• 1 x L68149 Inner Bearing
• 1 x 1.98" Grease Dust Cap w/Plug
• 1 x 171255TB 1.719" x 2.561" Double Lip Seal
• 4 x 7/16" x 1-1/4 Bolts
• 4 x 7/16" Lock Washers
• 4 x 7/16" Fine Hex Nuts
• 5 x 1/2"-20 60º Lug Nuts

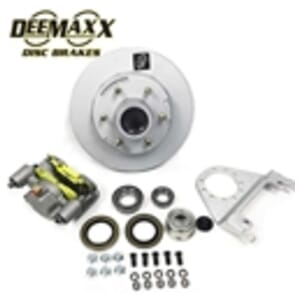

5,200 lbs.DeeMaxx Gold Finish disc brake.

• 6 lug 1/2" studs. 12" Integral vented rotor.
• Unique rotor cross section design actively draws cooling air from the rotor interior!
• Exclusive 120º bleeder design means better bleeding, balanced system, and no more damaged bleeders!
• Exclusive laser writing on caliper means instructions are always there!
• Every caliper is tested to 2000 psi.
• Robust ductile iron casting eliminates flexing resulting in more brake torque.
• Exclusive bolt design means no more mishandling or incorrect shipping of bolts.
• Ceramic brake pads are slotted, chamfered, & feature a stainless steel clip.
• Unique bracket design provides twice as many mounting options for caliper position
• Produced in ISO Quality certified factories
• Passed the SAE J2681 Brake test!

5,200 lbs.DeeMaxx Maxx Finish disc brake.

• 6 lug 1/2" studs. 12" Integral vented rotor.
• Unique rotor cross section design actively draws cooling air from the rotor interior!
• Exclusive 120º bleeder design means better bleeding, balanced system, and no more damaged bleeders!
• Exclusive laser writing on caliper means instructions are always there!
• Every caliper is tested to 2000 psi.
• Robust ductile iron casting eliminates flexing resulting in more brake torque.
• Exclusive bolt design means no more mishandling or incorrect shipping of bolts.
• Ceramic brake pads are slotted, chamfered, & feature a stainless steel clip.
• Unique bracket design provides twice as many mounting options for caliper position
• Produced in ISO Quality certified factories
• Passed the SAE J2681 Brake test!

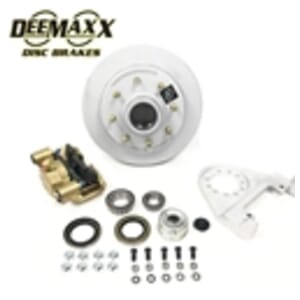

7,000 lbs.DeeMaxx Gold Finish disc brake.

• 8 lug 1/2" studs. 13.1" Integral vented rotor.
• Unique rotor cross section design actively draws cooling air from the rotor interior!
• Exclusive 120º bleeder design means better bleeding, balanced system, and no more damaged bleeders!
• Exclusive laser writing on caliper means instructions are always there!
• Every caliper is tested to 2000 psi.
• Robust ductile iron casting eliminates flexing resulting in more brake torque.
• Exclusive bolt design means no more mishandling or incorrect shipping of bolts.
• Ceramic brake pads are slotted, chamfered, & feature a stainless steel clip.
• Unique bracket design provides twice as many mounting options for caliper position
• Produced in ISO quality certified factories
• Passed the SAE J2681 Brake Test!

7,000 lbs.DeeMaxx Maxx Finish disc brake.

• 8 lug 1/2" studs. 13.1" Integral vented rotor.
• Unique rotor cross section design actively draws cooling air from the rotor interior!
• Exclusive 120º bleeder design means better bleeding, balanced system, and no more damaged bleeders!
• Exclusive laser writing on caliper means instructions are always there!
• Every caliper is tested to 2000 psi.
• Robust ductile iron casting eliminates flexing resulting in more brake torque.
• Exclusive bolt design means no more mishandling or incorrect shipping of bolts.
• Ceramic brake pads are slotted, chamfered, & feature a stainless steel clip.
• Unique bracket design provides twice as many mounting options for caliper position
• Produced in ISO quality certified factories
• Passed the SAE J2681 Brake Test!
