8,000 lbs. Straight Dexter® Trailer Axles




Select Part Number for Volume Pricing

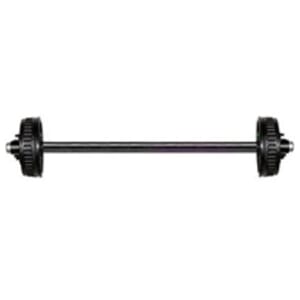

8,000 lb. Electric Drum Brake Standard Spring Trailer Axle
Free  FedEx  Shipping and Volume Pricing
Trailer axle: 3.5" diameter x 1/4" wall, round tubing. Brake: 12" x 3 3/8" electric. Hub/Drum: Hub/drums available in 8-6.5" in a 9/16" or 5/8" stud.  Lug nuts are not included.  Lubrication: Grease or Oil. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Will come complete with backing plates and hub/drum assemblies. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 22.5" Minimum Overhang = 17" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination.  Axles are straight axles, not cambered.  Coated with standard black paint.  Drums and electric brakes are available in TruRyde or Dexter options.

Hanger PositionsHanger Positions

(Images, descriptions, volume discounts, find out more...)
Starting At
$1,554.99
View More

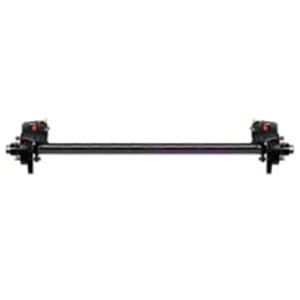

8,000 lb. Kodiak Hydraulic Disc Brake Standard Spring Dexter® Trailer Axle
Free  FedEx  Ground Shipping and Volume Pricing
Trailer axle: 3.5" diameter x 1/4" wall, round tubing. Kodiak disc brake. Hub/rotor available in 8-6.5". Lubrication: Grease. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Will come complete with backing plates and hub/drum assemblies. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 22.5" Minimum Overhang = 17" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination.  Axles are straight axles, not cambered.  Coated with standard black paint.  Axle seats come loose with axle.

Hanger PositionsHanger Positions

>
(Images, descriptions, volume discounts, find out more...)
Starting At
$1,554.99
View More
Southwest Wheel® 8,000 lbs. Tandem Trailer Axle Suspension Kit - 8000-KIT-TANDEM
Free  FedEx  Ground Shipping and Volume Pricing
Southwest Wheel® 8,000 lbs. Tandem Trailer Axle Suspension Kit Including TruRyde® Leaf Springs, Hanger & U-Bolt kits.
  • This suspension kit is for tandem trailers
  • Fits Dexter Axles
Part No Quantity Description
SH-E5115 4 5 Leaf 25 1/4" Double Eye Spring 2950 lbs.
UBR-300800-56F 8 3.5" U-bolts, 8" long, 2" ID width, 9/16"-18 thread, 2" thread length
TP-350200 4 4" x 7" tie plates for 3.5" U-bolts
916LW 16 9/16"-20 Lock Washers
916NFN 16 9/16"-18 Nuts
916SLNE 14 9/16" Self-Locking Nut
916X312NFBLN 14 9/16"-18 x 3 1/2" Shackle Bolt
EQ-4541
2 12" Steel Fabricated Equalizer for 2" Spring
HG-15843-F 2 Front Hanger
HG-291-C 2 Center Hanger
HG-15853-R 2 Rear Hanger
(Images, descriptions, volume discounts, find out more...)
Price: $596.99
