7,000 lbs. Straight Dexter® Trailer Axles

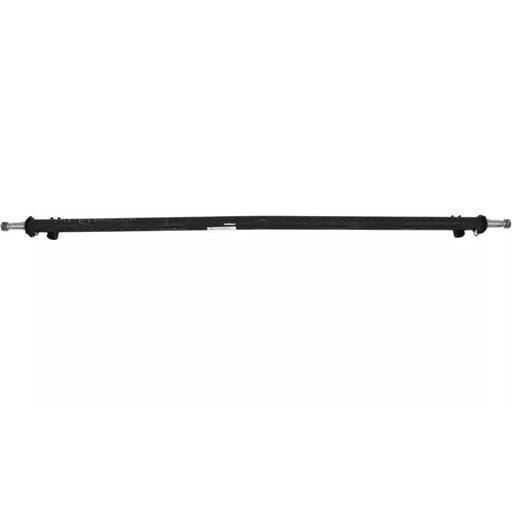

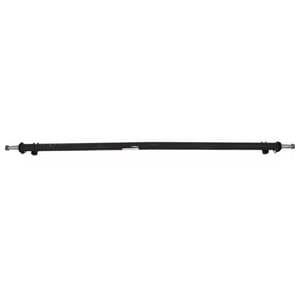

Trailer axle: 3" diameter x 1/4" wall round tubing. Lubrication: Grease. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 18" Minimum Overhang = 15" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination.  Axles are straight axles, not cambered.  Coated with standard black paint.   Axle seats come loose with axle.  Trailer axle assembly contains trailer axle beam with pressed in spindles and five bolt mount brake flange. This listing is for an Axle beam only, hubs are not included and are sold separately.

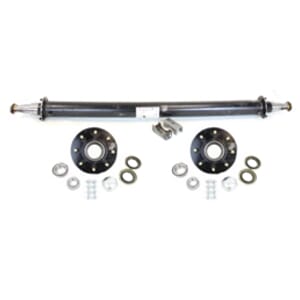

Trailer axle: 3" diameter x 1/4" wall round tubing. Idler hubs and hub/drums available in 8-6.5". Lubrication: Grease. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 18" Minimum Overhang = 15" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination.  Axles are straight axles, not cambered.  Coated with standard black paint.  Axle seats and lug nuts come loose with axle.  Trailer axle assembly contains trailer axle beam with pressed in spindles and five bolt mount brake flange, eight stud hubs (races pressed), bearings, grease cap, and grease seal, axle seats, and lug nuts.

Trailer axle: 3" diameter x 1/4" wall round tubing. Hub/drums are available in standard stud pilot 8-6.5" with 1/2" studs and conical nuts for standard 16" stud pilot wheels or hub pilot 8-6.5" with 9/16" studs and swiveling flange nuts with 4.75" center bore for 17.5" hub pilot wheels (steel wheel 17240-52 or Alcoa aluminum wheel 661401). 9/16" Lug nuts are sold separately. If you are running  17.5" x 6.75"Hub piloted wheels, Swiveling flange Lug nuts are available here.  If you are running 16" Stud piloted single wheels, 60° cone lug nuts are available here. Will come complete with backing plates and hub/drum assemblies. Brake: 12" x 2" available in electric drum, self-adjusting electric drum, or hydraulic drum. Lubrication: Grease. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 18" Minimum Overhang = 15" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination. Axles are straight axles, not cambered. Coated with standard black paint. Axle seats come loose with axle. Brake axles ordered on FedEx ground will require assembly.  Brake axles ordered on FedEx LTL or customer pickup can come assembled for an additional charge.  To order a brake axle you will need to tell us your hub face measurement, select a bolt circle, and select which style of brake assembly.  Please select all required fields.

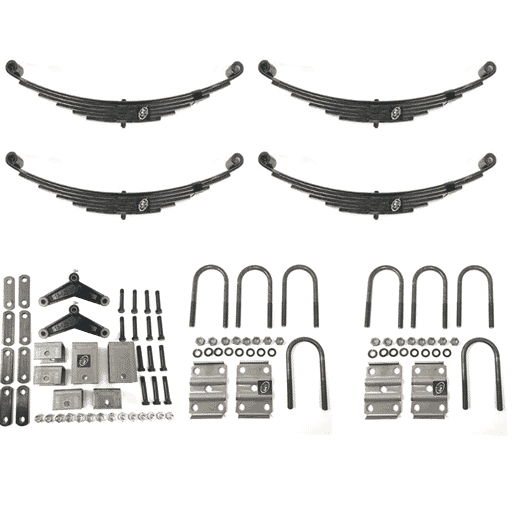

Part No	Quantity	Description
SH-E5115	4	5 Leaf 25 1/4" Double Eye Spring 2950 lbs.
UBR-300700-56F	8	3" U-bolts, 7" long, 3.09" ID width, 9/16"-18 thread
TP-300209R	4	3.50" x 5.37" Tie Plates for 3" U-bolts
916LW	16	9/16"-20 Lock Washers
916NFN	16	9/16"-18 Nuts
916SLNE	14	9/16" Self-Locking Nut
916X312NFBLN	14	9/16"-18 x 3 1/2" Shackle Bolt
EQ-4541	2	12" Steel Fabricated Equalizer for 2" Spring
HG-15843-F	2	Front Hanger
HG-291-C	2	Center Hanger
HG-15853-R	2	Rear Hanger
