5,200 lbs. 4" Drop Dexter® Trailer Axles




Select Part Number for Volume Pricing
5,200 lb. 4" Drop Standard Spring Dexter® Trailer Axle Beam
Free  FedEx  Ground Shipping and Volume Pricing
Trailer axle: 3" diameter x 3/16" wall round tubing.  Lubrication: Grease. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 21" Minimum Overhang = 17" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination.  Axles are straight axles, not cambered.  Coated with standard black paint.  Axle seats come loose with axle.  This listing is for an axle beam only, hubs are not included and are sold separately.

Hanger Positions

(Images, descriptions, volume discounts, find out more...)
Starting At
$293.99
View More

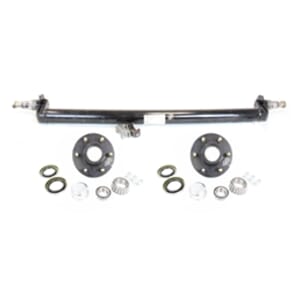

5,200 lb. 4" Drop Standard Spring Dexter® Trailer Axle
Free  FedEx  Ground Shipping and Volume Pricing
Trailer axle: 3" diameter x 3/16" wall round tubing. Idler hubs and hub/drums available in 6-5.5". Lubrication: Grease. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 21" Minimum Overhang = 17" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination.  Axles are straight axles, not cambered.  Coated with standard black paint.  Axle seats and lug nuts come loose with axle.  Trailer axle assembly contains trailer axle beam with pressed in spindles and five bolt mount brake flange, six stud hubs (races pressed), bearings, grease cap, and grease seal, axle seats, and lug nuts.

Hanger Positions

(Images, descriptions, volume discounts, find out more...)
Starting At
$429.99
View More

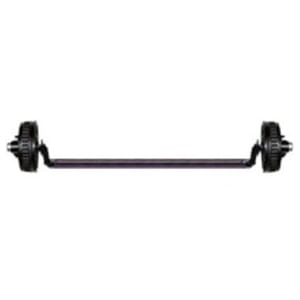

5,200 lb. Brake 4" Drop Standard Spring Dexter Trailer Axle
Free  FedEx  Ground Shipping and Volume Pricing
Trailer axle: 3" diameter x 3/16" wall round tubing. Idler hubs and hub/drums available in 6-5.5". Will come complete with backing plates and hub/drum assemblies. Brake: 12" x 2" is availabe in electric drum, self-adjusting electric drum, or hydraulic drum. Lubrication: Grease. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 21" Minimum Overhang = 17" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination. Axles are straight axles, not cambered. Coated with standard black paint. Axle seats come loose with axle. Brake axles ordered on FedEx ground will require assembly. To order a brake axle you will need to tell us your hub face measurement, select a bolt circle, and select which style of brake assembly. Please select all required fields.

Hanger Positions

(Images, descriptions, volume discounts, find out more...)
Starting At
$629.99
View More
5,200 lb. DeeMaxx Hydraulic Disc Brake 4" Drop Standard Spring Dexter Trailer Axle
Free  FedEx  Ground Shipping and Volume Pricing
Trailer axle: 3" diameter x 3/16" wall round tubing. DeeMaxx or Kodiak disc brake is available in a 6-5.5" bolt circle and available in four different finishes DeeMaxx with Gold Caliper, DeeMaxx with Max Caliper, Kodiak dacroment plated hub/rotor, caliper and mounting bracket, or Kodiak dacroment plated hub/rotor, stainless steel caliper and silver cadmium mounting bracket. The trailer Axle will come complete with DeeMaxx or Kodiak hub/rotors, calipers, and mounting brackets. Lubrication: Grease. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 21" Minimum Overhang = 17" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination. Axles are straight axles, not cambered. Coated with standard black paint. Axle seats come loose with axle.  To order a brake axle you will need to tell us your hub face measurement, and select disc brake type. Then select update kit and the order button will appear.

Hanger Positions

(Images, descriptions, volume discounts, find out more...)
Starting At
$729.99
View More

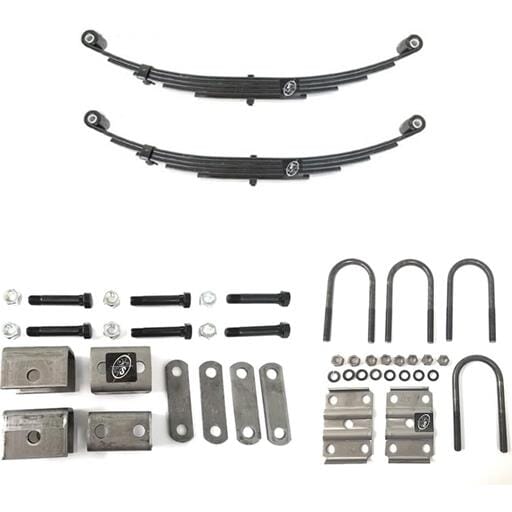

5200-SINGLE
Free  FedEx  2nd Day Air Shipping and Volume Pricing
5,200 lbs. Trailer Axle Suspension kit Including Leaf Springs, Hanger & U-Bolt kit.
  • This suspension kit is for a single trailer axle
  • Fits Dexter Axles
This kit includes:
  • 2x 5 leaf 25 1/4" double eye spring 2900 lbs. each. 1 3/4" wide and will accept a 9/16" shackle bolt. Nylon bushing are included.
  • 1x single hanger Kit for double eye spring.
  • 1x  3" round U-bolt kit, bolt length 7 1/8", 9/16" diameter, for 2" spring,
(Images, descriptions, volume discounts, find out more...)
Price: $188.99

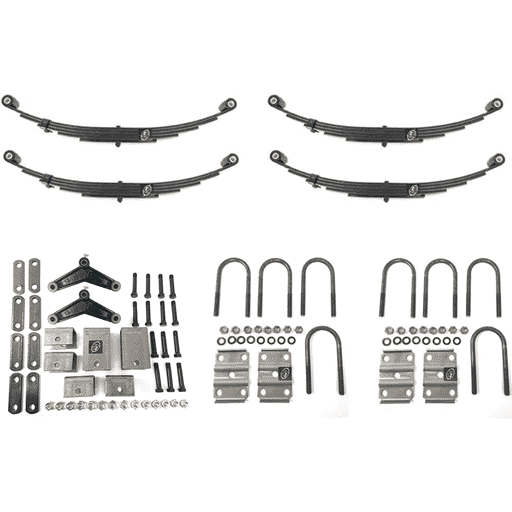

Southwest Wheel® 5,200 lbs. Tandem Trailer Axle Suspension Kit - 5200-TANDEM
Free  FedEx  2nd Day Air Shipping and Volume Pricing
Southwest Wheel® 5,200 lbs. Tandem Trailer Axle Suspension Kit Including TruRyde® Leaf Springs, Hanger & U-Bolt kits.
  • This suspension kit is for tandem trailers
  • Fits Dexter Axles
Part No Quantity Description
DE-SW5 4 5 Leaf 25 1/4" Double Eye Spring 2950 lbs.
UBR-300700-56F 8 3" U-bolts, 7" long, 3.09" ID width, 9/16"-18 thread
TP-300209R 4 3.50" x 5.37" Tie Plates for 3" U-bolts
916LW 16 9/16"-20 Lock Washers
916NFN 16 9/16"-18 Nuts
SL-256 8 2 9/16" Shackle Link
916SLNE 14 9/16" Self-Locking Nut
916X3NFBLN 14 9/16"-18 x 3" Shackle Bolt
EQ-E1
2 7 3/4" Triangle Equalizer Bar
HG-425 2 Hanger 4 1/4" Long
HG-144 4 Hanger 2 1/2" Long
(Images, descriptions, volume discounts, find out more...)
Price: $364.99
