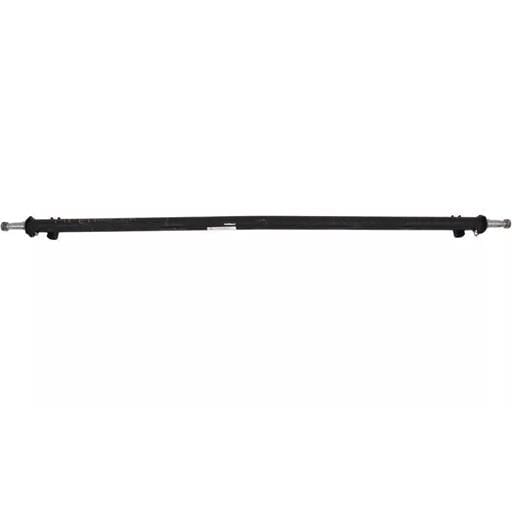

5,200 lb. Hydraulic Disc Brake Standard Spring Dexter® Trailer Axle

Trailer axle: 3" diameter x 3/16" wall round tubing. DeeMaxx or Kodiak disc brake is available in a 6-5.5" bolt circle and available in four different finishes DeeMaxx with Gold Caliper, DeeMaxx with Max Caliper, Kodiak dacroment plated hub/rotor, caliper and mounting bracket, or Kodiak dacroment plated hub/rotor, stainless steel caliper and silver cadmium mounting bracket. The trailer Axle will come complete with DeeMaxx or Kodiak hub/rotors, calipers, and mounting brackets.Lubrication: Grease is not included. Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Includes brake flange. Trailer axles are available in different lengths or hub faces. Trailer axle price does not include springs, hangers, or u-bolts. Maximum Overhang = 21" Minimum Overhang = 17" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination. Axles are straight axles, not cambered. Coated with standard black paint. Axle seats come loose with axle.  To order a brake axle you will need to tell us your hub face measurement, and select disc brake type. Then select update kit and the order button will appear.
